Synthetic Acrylic Elitecourt 7-Layer System

(Depending On Base Condition)

The synthetic acrylic Elitecourt 7-layer system is a specialized coating process designed to create durable, resilient, and high-performance sports flooring. It is widely used in outdoor and indoor courts such as tennis, basketball, and multi-sport surfaces. Each layer serves a specific purpose, working together to ensure optimal performance, longevity, and aesthetics.

Acrylic 7 Layer System

Elitecourt 7-Layer System on Concrete Base

(Depending On Base Condition)

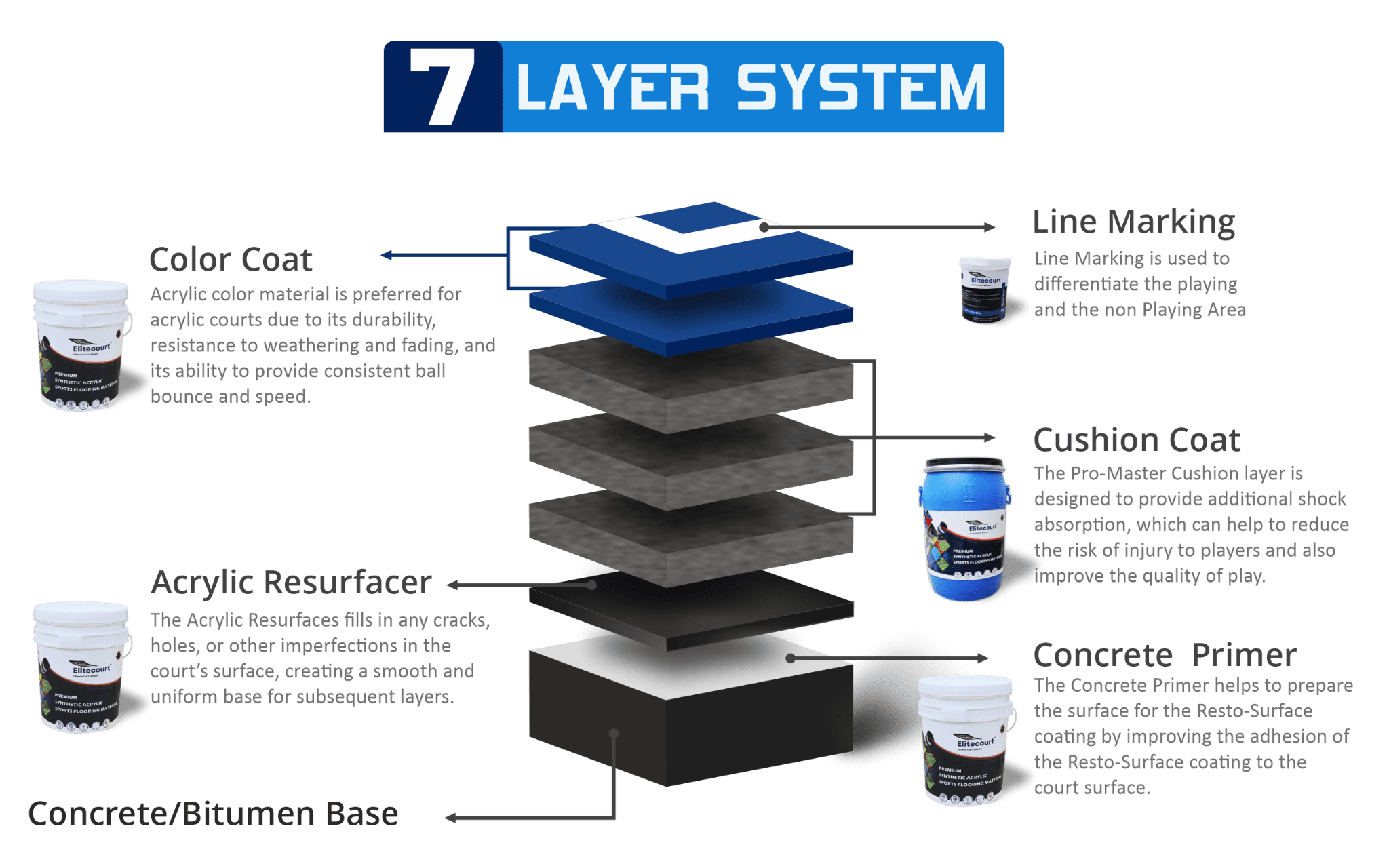

7 Layer System

Layer 1: Primer Layer

Purpose: The primer layer ensures strong adhesion between the concrete base and the Resurfacer layers. It penetrates the porous surface of the concrete, seals it, and creates a smooth foundation for the other coatings.

Material: Pure Acrylic-based primer designed for concrete surfaces.

Application: Applied using a roller or squeegee to ensure even coverage.

Thickness After Application: 0.2-0.3 mm.

Features:

  • Prevents delamination.
  • Seals minor cracks and pores.
  • Provides resistance to moisture infiltration from the substrate.

Layer 2 and 3: Acrylic Resurfacer Layer

Purpose: This layer smooths out surface irregularities and provides a uniform, even texture to the floor. It also enhances durability and prepares the base for cushioning.

Material: Pure Acrylic-based resurfacer, often mixed with fine silica sand for improved leveling.

Application: Applied with a squeegee in one or two coats, depending on surface conditions.

Thickness After Application: 0.4-0.6 mm.

Features:

  • Fills minor cracks and imperfections.
  • Improves surface uniformity.
  • Increases the base strength and durability.

Layer 4 and 5: Pro-Master Cushion Layer

Purpose: The cushion layer provides shock absorption and enhances player comfort. This is particularly important in sports where impact reduction is necessary to minimize fatigue and injury risk.

Material: Acrylic cushion material mixed with fine rubber granules or other elastomeric particles.

Application: Applied in multiple passes to achieve the desired thickness and elasticity.

Thickness After Application: 0.6-0.8 mm.

Features:

  • Adds resilience and flexibility.
  • Enhances player comfort by absorbing impact.
  • Reduces stress on joints and muscles.

Layer 6 and 7: Acrylic Color

Purpose: The top two layers provide the final color, texture, and finish to the sports floor. These layers are designed for high durability and excellent grip.

Material: Highly Pure Acrylic Colored topcoat with UV-resistant pigments and anti-slip additives.

Application: Applied in two coats using a squeegee, ensuring even distribution and uniform color.

Coat 1: Mix Appropriate Silica Sand and Portable Water with Elitecourt Pure Acrylic Color and Apply with Squeegee

Top Coat 2: Mix Appropriate Water with Elitecourt Pure Acrylic Color and Apply with Squeegee after Grinding the First Coat of Color.

Thickness After Application: Each coat is approximately 0.3–0.5 mm, totaling 0.6–1.0 mm for both layers.

Features:

  • Offers a vibrant, consistent finish.
  • Provides excellent slip resistance.
  • Protects the underlying layers from UV degradation and wear.
  • Easy to clean and maintain.

Total Thickness After Application

The complete system has a total thickness of approximately 2.4–2.9 mm, depending on the thickness of the cushion layer and the number of coats applied.

Elitecourt 7-Layer System on Bitumen Base

(Depending On Base Condition)

7 Layer System

Layer 1 and 2: Acrylic Resurfacer Layer

Purpose: This layer smooths out surface irregularities and provides a uniform, even texture to the floor. It also enhances durability and prepares the base for cushioning.

Material: Pure Acrylic-based resurfacer, often mixed with fine silica sand for improved leveling.

Application: Applied with a squeegee in one or two coats, depending on surface conditions.

Thickness After Application: 0.4-0.6 mm.

Features:

  • Fills minor cracks and imperfections.
  • Improves surface uniformity.
  • Increases the base strength and durability.

Layer 3, 4 and 5: Pro-Master Cushion Layer

Purpose: The cushion layer provides shock absorption and enhances player comfort. This is particularly important in sports where impact reduction is necessary to minimize fatigue and injury risk.

Material: Acrylic cushion material mixed with fine rubber granules or other elastomeric particles.

Application: Applied in multiple passes to achieve the desired thickness and elasticity.

Thickness After Application: 0.6-0.8 mm.

Features:

  • Adds resilience and flexibility.
  • Enhances player comfort by absorbing impact.
  • Reduces stress on joints and muscles.

Layer 6 and 7: Acrylic Color

Purpose: The top two layers provide the final color, texture, and finish to the sports floor. These layers are designed for high durability and excellent grip.

Material: Highly Pure Acrylic Colored topcoat with UV-resistant pigments and anti-slip additives.

Application: Applied in two coats using a squeegee, ensuring even distribution and uniform color.

Coat 1: Mix Appropriate Silica Sand and Portable Water with Elitecourt Pure Acrylic Color and Apply with Squeegee

Top Coat 2: Mix Appropriate Water with Elitecourt Pure Acrylic Color and Apply with Squeegee after Grinding the First Coat of Color.

Thickness After Application: Each coat is approximately 0.3–0.5 mm, totaling 0.6–1.0 mm for both layers.

Features:

  • Offers a vibrant, consistent finish.
  • Provides excellent slip resistance.
  • Protects the underlying layers from UV degradation and wear.
  • Easy to clean and maintain.

Total Thickness After Application

The complete system has a total thickness of approximately 2.4–2.9 mm, depending on the thickness of the cushion layer and the number of coats applied.

Benefits of the 7-Layer System

7 Layer system is an ideal choice for creating long-lasting and high-performance sports flooring on concrete/bitumen bases.

durable

Durability

Resists wear and tear, making it suitable for high-traffic areas.

shield

Safety

Provides anti-slip properties and impact absorption.

vision

Aesthetics

Offers a professional, visually appealing finish.

uv-protective-fabric

Weather Resistance

UV-stable and able to withstand varying weather conditions.
